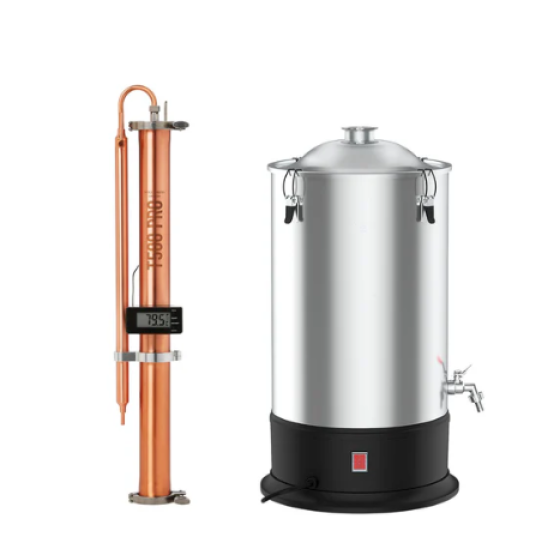

A bundle including the Still Spirits Create+ T500 Pro and Boiler 25L. Engineered for modularity and performance, the Create+ T500 Pro and Boiler 25L combine to create an all-in-one reflux system designed to streamline the distillation process while delivering exceptional results.

It's 2" tri-clamp connection allows for it to be connected to 2" tri-clamp accessories, so you have the option to experiment with different setups and attachments. The T500 Pro is an all-in-one reflux column and condenser designed to streamline the distillation process while delivering exceptional results. This innovative unit combines advanced functionality with unmatched convenience, eliminating the need for separate components. Its integrated design features a pre-packed column with both copper and stainless steel saddles, optimising vapour reflux and elevating the quality of your distillate.

With a maximum capacity of 25 litres, the Boiler 25L features dual element control switches, providing more control during distillation. It comes complete with a 2" tri-clamp to DN40 threaded adapter, allowing for connection to 2" tri-clamp accessories, so you can experiment with different setups and attachments.

Features:

• All-in-one reflux column and condenser + boiler
• For intermediate-advanced distilling
• Suitable for distilling water and alcohol
• T500 constructed from high-quality T2-grade copper with stainless steel tri-clamp ferrules
• Designed in New Zealand
• Pre-packed with copper (105 g) and stainless steel saddles (485 g)
• 2" tri-clamp connections
• Integrated thermowell in the column head for accurate vapour temperature readings
• Beeping alarm thermometer with adjustable high/low temperature alerts
• Removable cold finger cooling coil and detachable product condenser
• Food-grade silicone seals
• Saves up to 30% water compared to the original T500 (depending on usage)
• Dual boiler element control switches provide more control during distillation - when both switches are in the ON position, the element will be supplied full power of 2200W. When one switch is in the OFF position, it will only consume 1100W of power.
• Boil dry reset
• Thermal cut out fuse
• Waste discharge tap with a stainless-steel ball valve
• Boiler lid with 48 mm opening
• 25 L Boiler capacity

Included:

• Create+ T500 Pro Column & Condenser
• 2 x Create+ 2" Tri-Clamps
• Copper and Stainless Steel Saddles (Pre-Packed)
• Create+ Beeping Alarm Thermometer with 2" Mounting Bracket
• 2x Cooling Water Tubes
• Ceramic Boil Enhancers
• Tap Adapter Flow Controller with Kitchen and Garden Tap Adapters
• Create+ Boiler 25 L
• Create+ Boiler Lid
• 2" Tri-clamp to DN40 Threaded Adapter (includes: Silicon gasket and DN40 Nut)
• Instructions

Specifications:

T500 Pro:

• Dimenions: H 67.7 cm x W 12.1 cm x D 10.8 cm
• Weight: 2.63 kg
• Warranty: 3 years
• Ease of Use: Intermediate
• Average water use during distillation: You will use approx. 140 L (37 US Gal) per 25 L distillation.*
• Yield: 8 L (2.1 US Gal) of 40% ABV alcohol per 25 L (6.6 US Gal) wash (based on using the standard recipe of 8 kg (17.6 lb) of sugar**
• Purity: Distills at up to 93% ABV (186 US proof) before diluting to 40% ABV (80 US proof)**

* When used with the Create+ Water Flow Regulator.

**Per 25 L (6.6 US Gal) Turbo Classic 8 Production pack wash using the Create+ Boiler 25 L and T500 Pro Column & Condenser.

Boiler:

• Capacity: 25 L
• Dimenions: H 64 cm x W 36 cm x D 37 cm
• Weight: 5.42 kg
• Power: 2200W
• Warranty: 3 years

NOTE: The Boiler is designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. When used with the Still Spirits Boiler 25L lid or Alembic Dome, it is reasonably flexible and is sturdy enough to fit components within the following specifications:

A total column & condenser height up to 1.1 m (3.6 ft) from the boiler lid or dome.

A total column & condenser weight up to 11 kg (24 lbs), including uop to 2 kg lbs) off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6") to the main column.
