Icemaster Glycol Chiller/Icebank with Digital Controller 2
$1,095.00

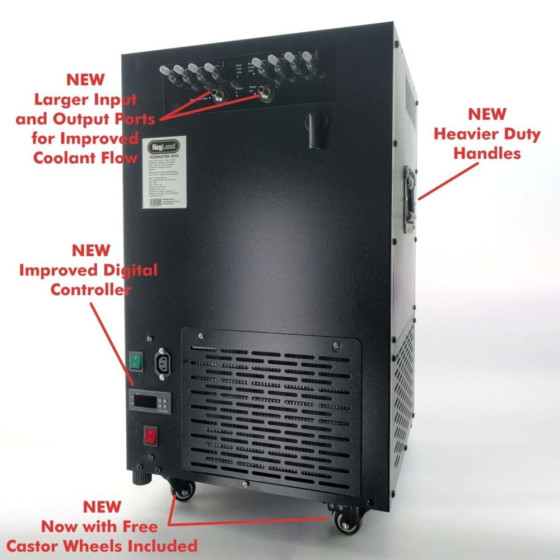

Icemaster Glycol Chiller/Icebank with Digital Controller - G40.1

Availability: Out of Stock

$1,095.00
Description

Details

This product is not kept in stock in our shop but we can order them in for our customers. If you wish to find out more about this product, please contact us.

The Icemaster Glycol Chiller/Icebank G40 is a commercial grade compact chilling dispensing solution. The G40 offers high performance for small to medium volume customers. It suits small bars, cafés, restaurants, serious home brewers, and nano breweries.

The Icemaster will help cool a single fermenter of up to 500L capacity, or up to four home brew sized fermenters at one time.

It also comes with flooding impeller pump as standard, all enclosed inside the unit for efficiency and ease in transport. The G40 is also completely enclosed including the removable lid, this will aid in cooling performance due to less heat loss.

The 8mm 304 stainless tubing is ideal for compression fittings to 6mm barbs for product lines located at the side of the unit making them easier to install under commercial bar tops where height restriction is limited. Ideally suited to be used for a glycol system, but can be used as an icebank instead.

The G40 unit uses an STC-1000 temperature controller to control the temperature.

Note: this is for the unit only, it does not come with attachments for the lines such as compression fittings, tubing for product and chilling lines, or polypropylene glycol.

Pump: Impeller+Pump Combination 35watts (6.5meter Head, approx. 2000L/hour)
Product Lines: 4 Stainless Steel Product Lines (4 x 11 meter coils)
Product Line Size: 304 Stainless Steel Coils (8mm OD x 7mm ID)
Cooling Output Line: 8mm ID 10mm OD
Icebank: 22kg Icebank (when using water)
Tank Capacity: 40L Water Capacity
Cooling Capacity: 780watt Cooling Capacity
Typical Product Cooling Capacity: 60Litres in the first hour, 35Litres each additional hour
Compressor Wattage: 260watt
Refrigerant: r134a
Dimensions: approx. 410mm x 410mm x 660mm
